Eight-way Signal Amplifier

TECHNICAL PARAMETER

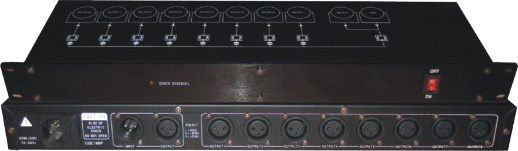

JMZ-8 DMX Splitter is a DMX512 distribution amplifier It is specially
designed for connection of DMX receivers (dimmers, color
changers, moving lights ,etc.) in a star configuration.
JMZ-8 can surmount the restriction that single RS485 can only
connect 32 sets of equipment
The multiple output optically isolated DMX512 distribution
amplifiers have become necessary in many DMX512 systems.
JMZ-8 provide total electrical ground isolation between different
branches of the star.
This greatly decreases problems with ground loops.
JMZ-8 amplifies and refits the DMX signal, that it makes the DMX
data transmission more reliable.
Input voltage : AC90V~240V,  50Hz / 60Hz
Power rated :15W  19’1U
size :530*190 *110mm           G.W: 2.3kg
