Technical parameters:

Menu functions:

A: A001 display product DMX address

2:001 this option used to set product DMX address code.

Three: MENU

Rpan: flip X axis

Rtil: flip Y

Lamp: control out bubble, ON and OFF options ON bright, OFF out

Rset: key reset, point confirm three seconds after reset

Colo: color model, pan MODE1, half color MODE2

Turn: display Turn 180 degrees

Disp: three kinds of mode, MODE1: normal display, MODE2: brightness is reduced by half, MODE3: close brightness (any key recovery)

Fact: back to the factory Settings

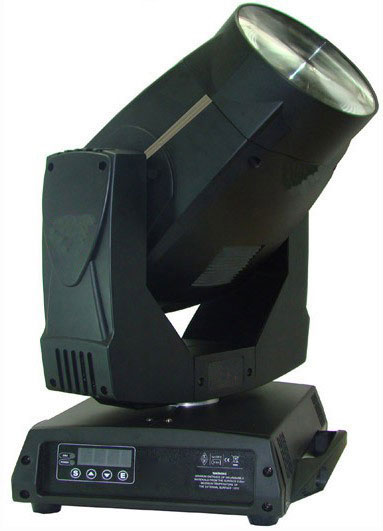

Product introduction:

Lamp: JENBO 300/2 FASTFIT (life: 850 hours color temperature: 8000 k)

Channel mode: 12 international standard DMX512 channel

Horizontal: 540 ° (16 bit precision scanning) electronic error correction

Vertical scanning: 270 ° (16 bit precision scanning) electronic error correction

Color piece of plate: eight plug type shade + white, with unidirectional rotation rainbow effect, pan go and half tone go two mode switch

Can plug design tablet: eight plug type design tablet + white, with reversible rainbow effect

Stroboscopic: double guillotine stroboscopic highest frequency can be 13 times per second, and can choose the random stroboscopic and pulse frequency flash

Atomization: 0% ~ 100% linear atomization,

Homemade electronic rectifier: make the product more light weight, brightness, stronger, more stable, no flicker light bulb

Power supply: AC210 ~ 240 v, 50/60 hz

Shake head beam light and shook his head design lamp have what distinction, shook his head beam light is paying attention to the process of light, the focal point is beam, shook his head design lamp is to pay attention to the end of light, the focal point is design! Beam light beam Angle is small, light wear head force strong, colour temperature high characteristic! Has a searchlight feeling!
