八路信号放大器
Eight-way Signal Amplifier

技术参数
8路独立放大驱动输出。
信号放大整形功能，延长信号传输距离。
增强数据总线接入设备数量的能力。
保护灯光控制台DMX512输出接口，
故障现场隔离，
提高数字式灯光控制系统的安全运行可靠性。
供电电源：AC90V-240V 50HZ/60HZ   19”1U
净重：1.85KG
毛重  2.3KG
包装尺寸530*180*100mm

TECHNICAL PARAMETER

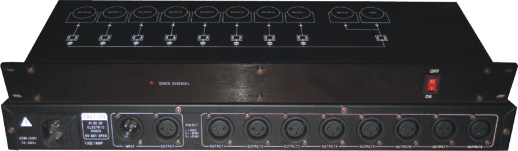

JMZ-8 DMX Splitter is a DMX512 distribution amplifier It is specially
designed for connection of DMX receivers (dimmers, color
changers, moving lights ,etc.) in a star configuration.
JMZ-8 can surmount the restriction that single RS485 can only
connect 32 sets of equipment
The multiple output optically isolated DMX512 distribution
amplifiers have become necessary in many DMX512 systems.
JMZ-8 provide total electrical ground isolation between different
branches of the star.
This greatly decreases problems with ground loops.
JMZ-8 amplifies and refits the DMX signal, that it makes the DMX
data transmission more reliable.
Input voltage : AC90V~240V,  50Hz / 60Hz
Power rated :15W  19’1U
size :530*190 *110mm           G.W: 2.3kg
