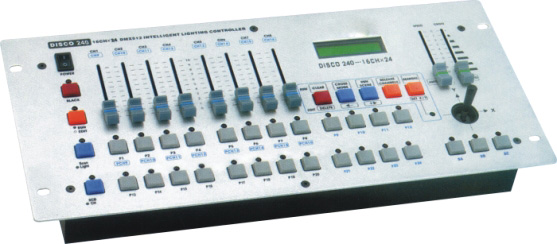

240 DMX512控台
240  DMX 512 Controller

技术参数
总通道数:240路
可单控电脑灯数量:12台
可控电脑灯最大通道数:16个
程序(场)数:12场
程序最大步数(场景):40步
程序总步数(场景):480步
场景渐变速度:0.1-25.5秒
调光通道:48通道(点控、分控、集控)
显示屏：LDC液晶显示屏，16X2字符
DMX512输出接口：3芯XLR针座及孔座
容量：128K大容量记忆卡   电压：AC220V/AC240V
体积：483×218×80mm    重量：3.25kg

TECHNICAL PARAMETER
Total number of passage:240 roads
Can control a computer light an amount:12 sets
Can control the biggest passage number in
computer light:16
Procedure(field) number:12
The procedure is the biggest to tread a
number (field view):40
Dimming channels: Channel 48-point, the sub-
control, centralized control
The field view changes speed gradually:0.1-25.5
Display: LCD screen, 16 ×2 characters
DMX512 exportations connect:3 and bore
Saving capacity:The 128 Ks big capacity memory card
Input electric voltage:AC220V/AC240V
Physical volume:483×218×80mm      Weight:3.25kg
